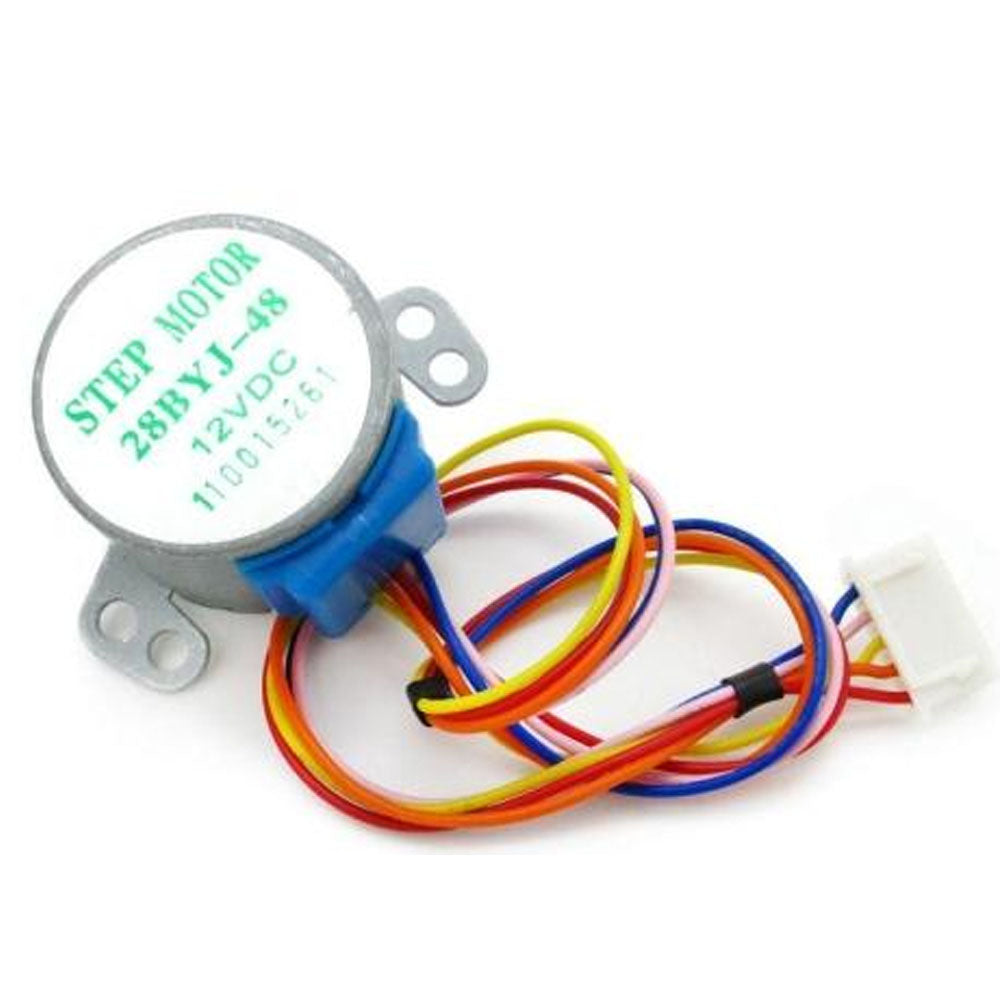

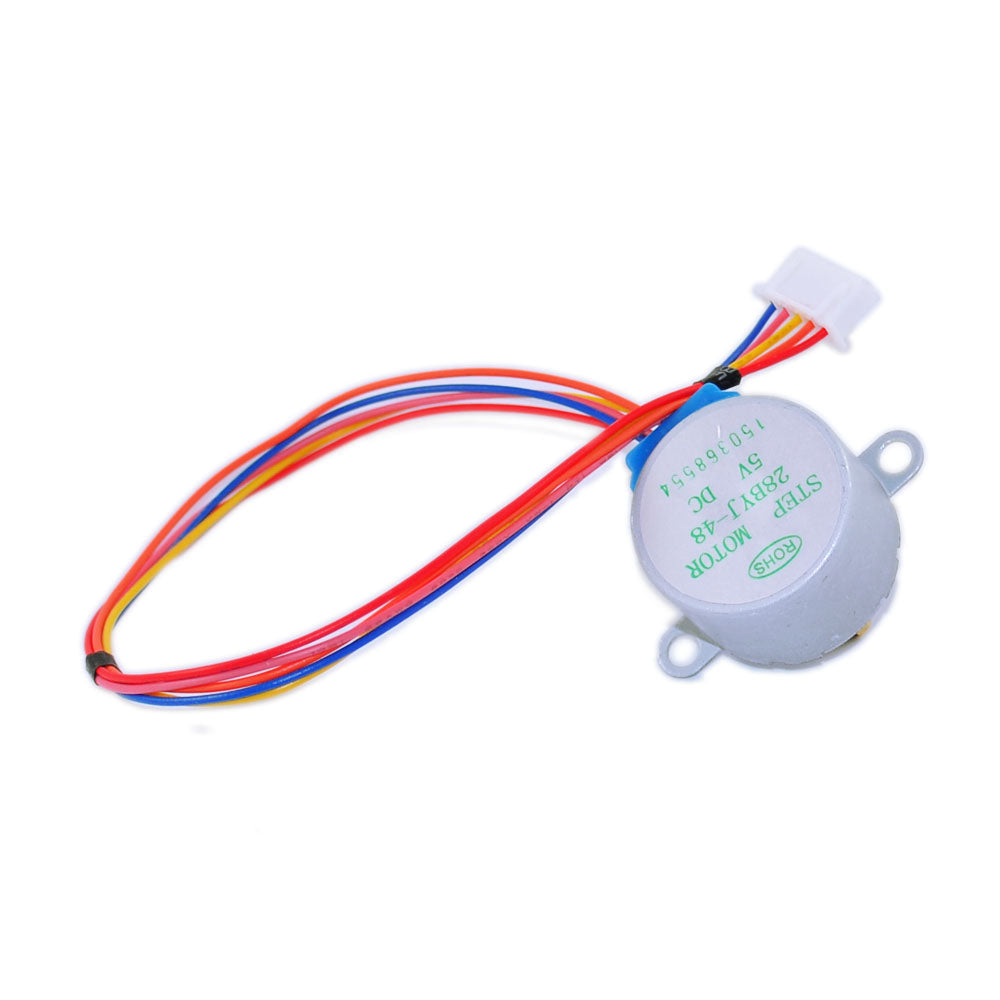

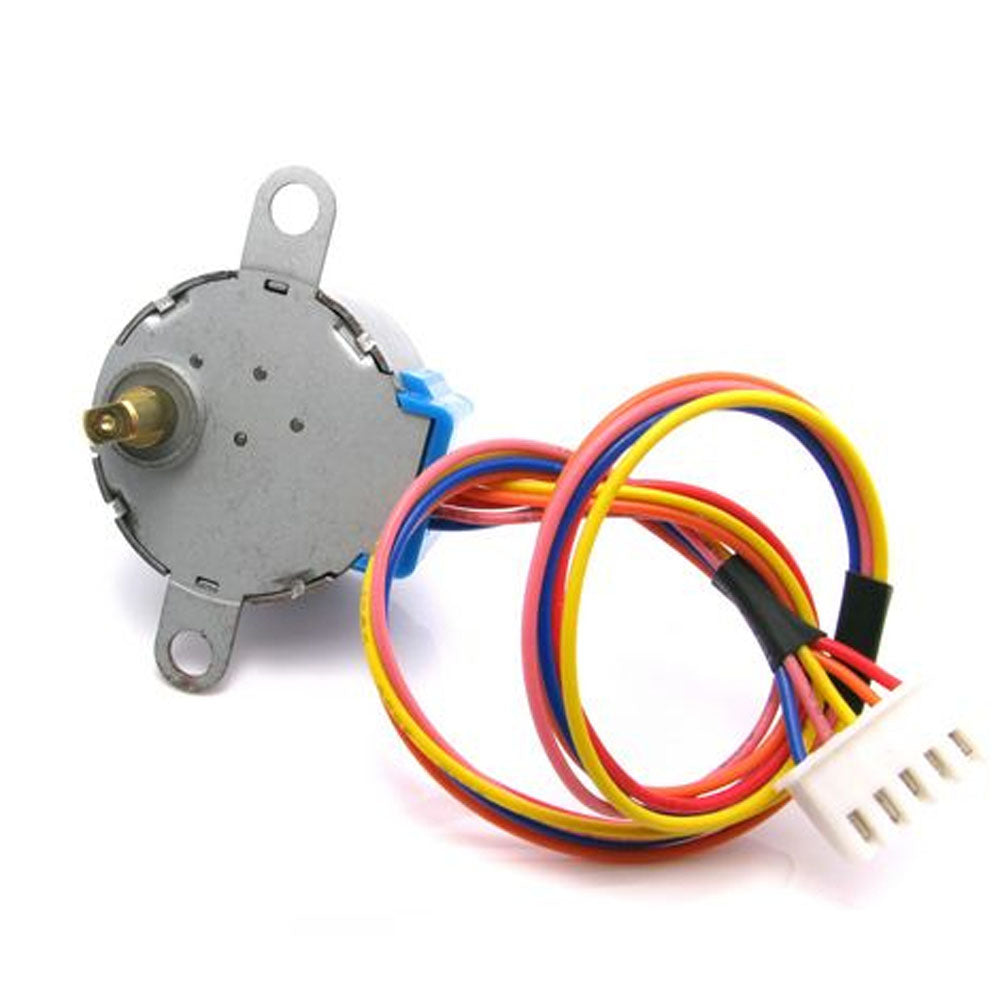

28BYJ-48 4 Phase 5 Wire Gear DC Mini Micro 5V Stepper Motor

28BYJ-48 4 Phase 5 Wire Gear DC Mini Micro 5V Stepper Motor

Regular price ₱50.00 PHP
Regular price ₱74.29 PHP Sale price ₱50.00 PHP
Sale Sold out
Shipping calculated at checkout.
Quantity
Specifications:
  1. Weight:32g
  2. Diameter: 27mm.
  3. Voltage: 5V.
  4. No-load pull into the frequency:>600Hz
  5. No-load pull-out frequency:>1000Hz
  6. Reduction ratio:1/64
  7. Step Angle:5.625° /64
  8. Self-positioning torque:>34.3mN.m
  9. DCR:200Ω±7%(25°c)
  10. Temperature:<40K(120Hz)
  11. Insulation resistance:>10MΩ(500V)
  12. Noise: <40dB(120Hz,No load,10cm)
  13. Dielectric Strength: 600VAC/1mA/1s
