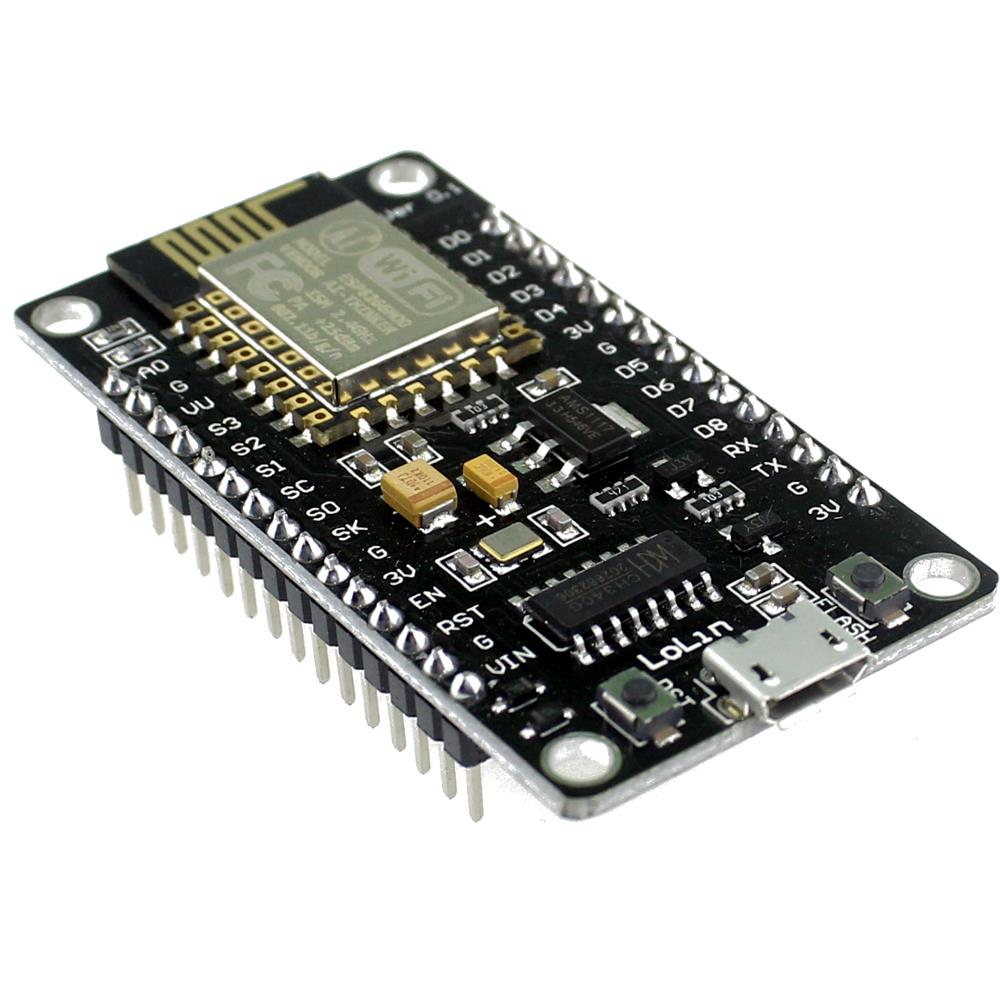

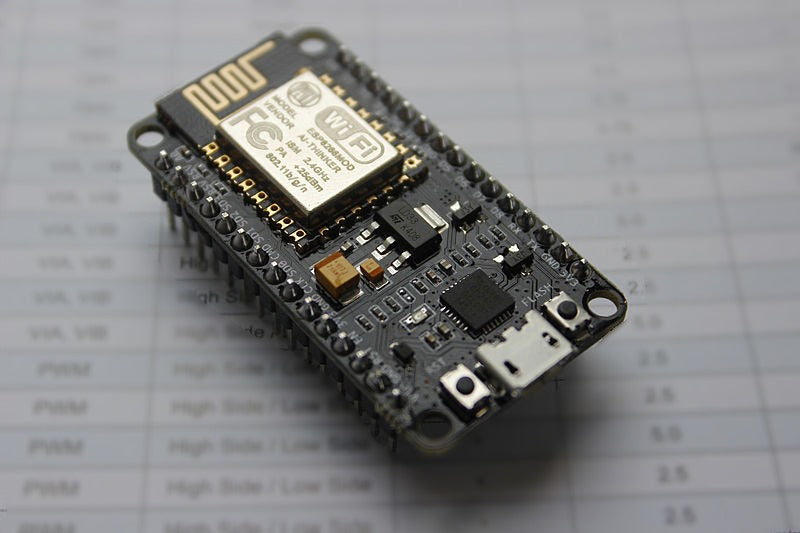

NodeMCU V3 ESP8266 ESP-12E CH340 WiFi Board

Short Description:

NodeMCU V3 ESP8266 ESP-12E is a WiFi development board used in prototyping IoT projects through the Lua programming language or through Arduino IDE.

Long Description:

ESP8266 NodeMcu is a popular and widely used development board based on the ESP-12E WiFi Module that combines elements of easy programming with Arduino IDE (C\C++) and WiFi capability. Through the build-in programmer and CH340G USB-to-Serial chip, flashing the ESP8266 and serial output on a PC, development and prototyping projects are done with ease. Just like Arduino boards, the ESP8266 NodeMcu has GPIO pins, voltage regulator, ADC, and Micro-USB port (for flashing and serial output) – all on one board. On top of that the ESP8266 NodeMcu has a full WiFi that takes care of the WiFi communication to a server or client.

Specifications:

• Tensilica L106 32-bit microcontroller unit at 80 MHz (or overclocked to 160 MHz)
• 32 kB instruction RAM
• 80 kB user data RAM
• 16 kB ETS system data RAM
• Flash Memory 4Mb
• USB – micro USB port for power, programming, and debugging
• 13 GPIO pins
• 802.11 b/g/n, supporting WPA/WPA2
• STA / AP modes support
• TCP / IP protocol stack, One socket
• TCP / UDP Server and Client
• Serial port baud rate configuration: 1200/2400/4800/9600/19200/38400/57600/74800/115200 bps
• Pin-compatible with Arduino UNO, Mega
• KEY button: modes configuration
• 32-bit hardware timer
• WiFi operation current: continuous transmission operation: ≈70mA (200mA MAX), deep sleep mode: <3mA
• Serial WiFi transmission rate: 110-460800bps
• Temperature: -40℃ ~ + 125 ℃
• Humidity: 10%-90% non-condensing
• Weight: about 20g (0.7oz)
• Pulse-Width Modulation (PWM)
• Interrupt capability
• 3.3V operating voltage, internal voltage regulator allows 5V on power input
• maximum current through GPIO pins: 12mA (source), 20mA (drain)
• available firmware for Arduino IDE
• Websocket libraries available
