galvantronix

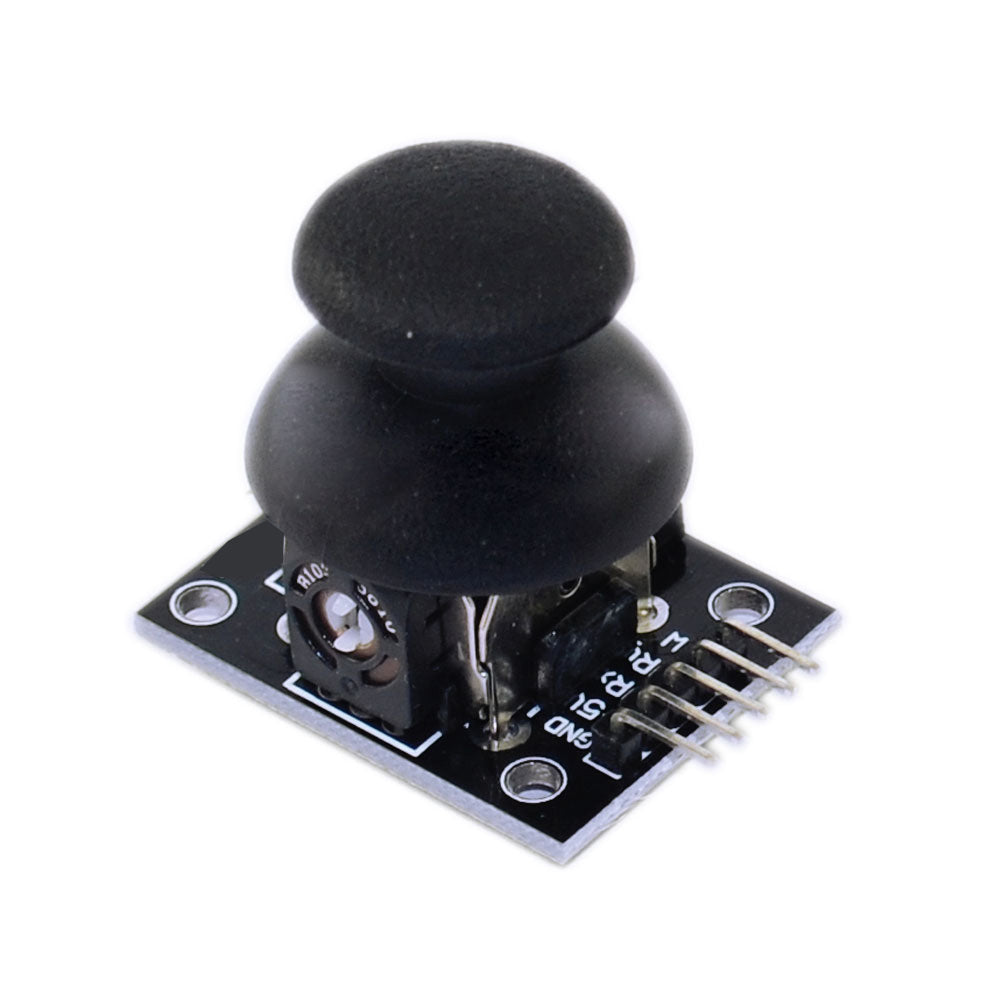

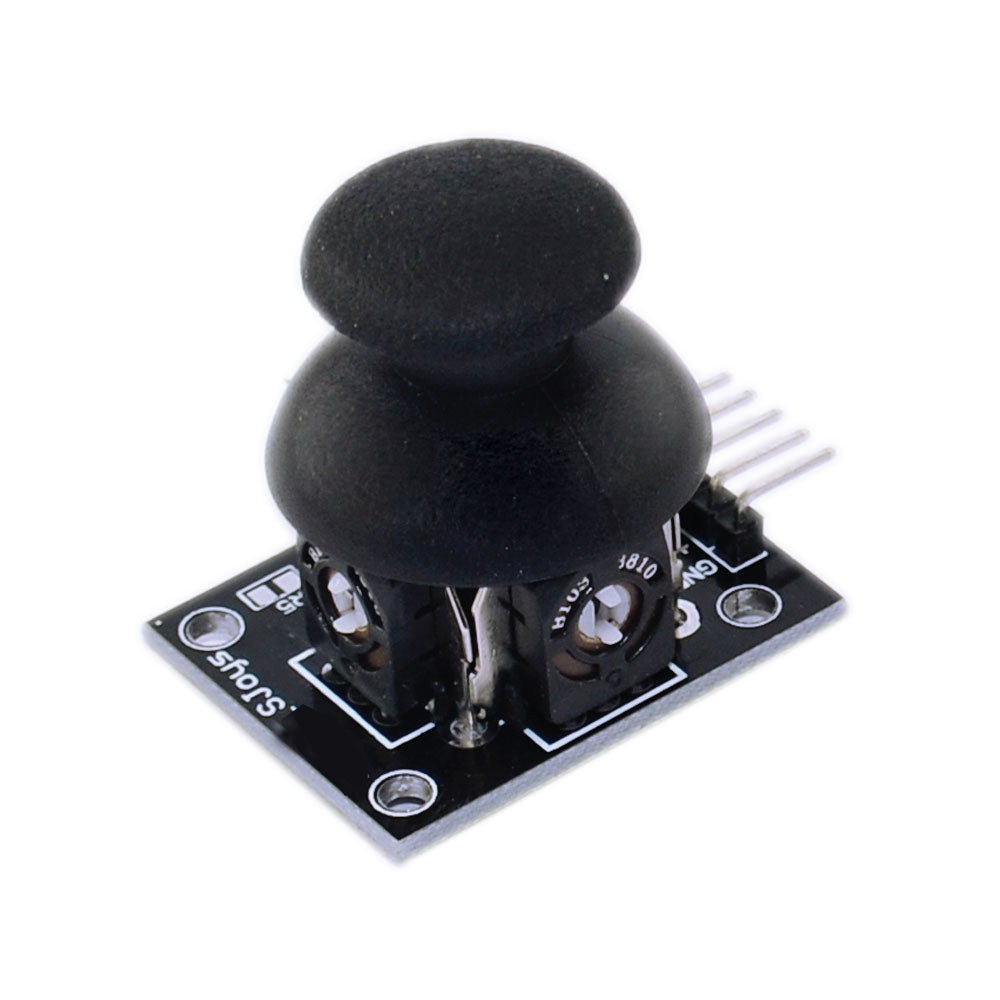

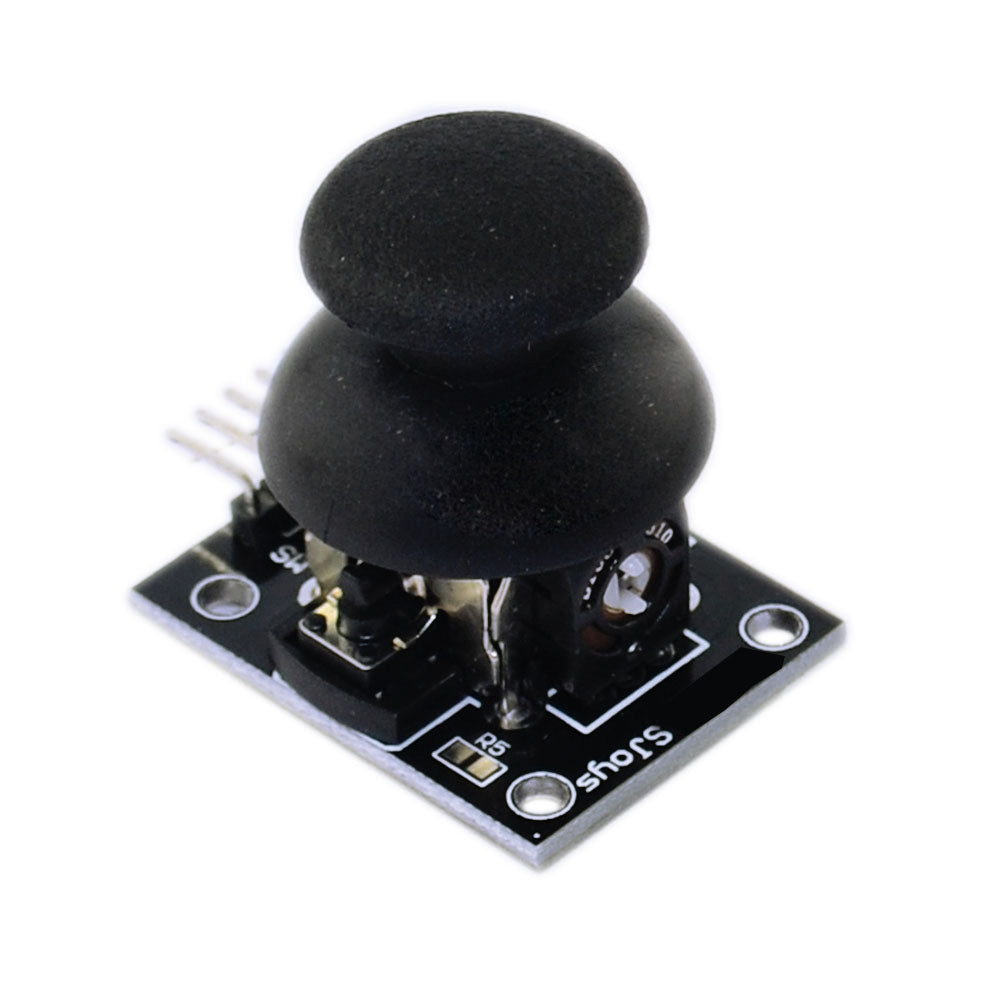

Dual-axis XYZ Joystick Sensor Module

Dual-axis XYZ Joystick Sensor Module

Regular price ₱49.00 PHP
Regular price ₱67.69 PHP Sale price ₱49.00 PHP
Sale Sold out
Shipping calculated at checkout.
Quantity

Description:

  1. Input voltage range: DC 3.3V to 5V
  2. Output signal: special two-way analog output and a digital output interface, the output value corresponding to (X, Y) biaxial offset, the type of analog; keys that the user press the Z-axis, Its type is a digital switch.
  3. Can be programmed with an Arduino Board through Arduino IDE.
  4. Cross joystick is a bi-directional 10K resistor, with the rocker in different directions, tap resistance with the change. This module uses a 5V power supply, the original state of X, Y read voltage of 2.5V or so, when pressed with the arrow direction, the read voltage value increases with the maximum to 5V; arrows in the opposite direction to press, read the voltage decreases, The minimum is 0V.
